10-Cell Nanobubble Injector Unit
This page outlines the detailed specifications for NBT’s 10-cell nanobubble plug-and-play unit, which is supplied in a 20-foot container.

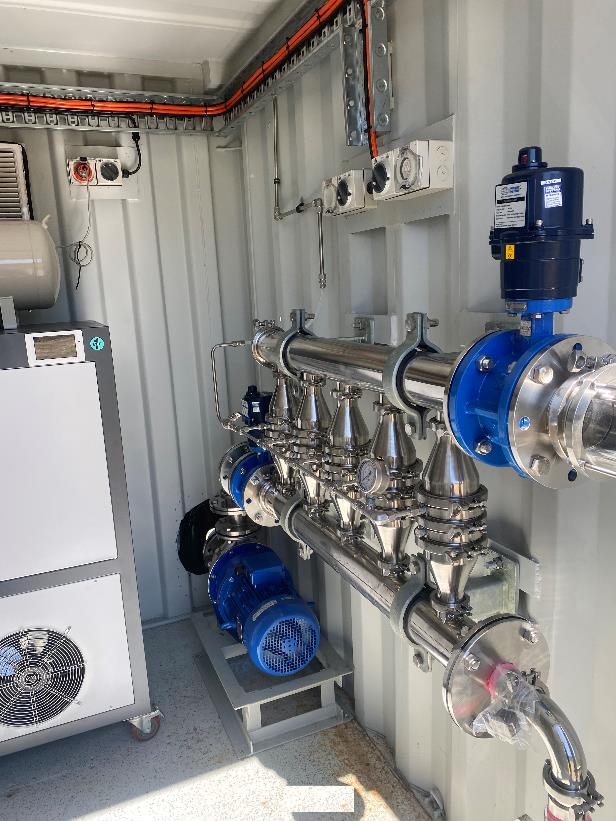

The interior of the 20 ft container includes:
- Oxygen generator (Vet1 OGP, stand-alone unit)
- Flood prevention device
- Ozone generator (Atlas 30, optional upon customer request)
- Control system (Smithtek)
- Pump (Lowara)
- Injector (NBT)
- All associated unit connections
Technical Specifications
Liquid Flow Capacity (Water)
| Flow Rate (Max) | 250 L/min |
| Maximum Liquid Pressure | 300 kPa |
Gas Flow Capacity (O2, O3)
| Flow Rate | Up to 30 L/min per Injector |
| Maximum Gas Pressure | 400 kPa |
Operating Parameters
| Temperature Tolerance | 4-65°C |
| Solids | 14 mm |
Process Capacity
| Water | 2500 L/min (250 L/min per injector) |
| Oxygen Delivery | 49 kg/day dissolved oxygen (85% OTE) |
| Ozone Delivery (Based on the application requirements) | 30 g/h |
Physical Characteristics of 3-Cell Nanobubble Injector Unit
| Size | L=116 cm, W=120 cm, H=170 cm |
| Mobility | Portable on wheels, or containerised (based on customer request) |
Oxygen Generator (Optional)
(Optional: Provided based on the customer request and application requirements)
| Model | Vet1 OGP Oxygen Generator (OGP-30 LB) |
| Output LPM | 30 LPM |
| Oxygen Purity % | 93±3% |
| Power KW | 2.5 |
| Oxygen Pressure | 70 psi |
| Working Voltage | 110/220 v |
| Relative Humidity | ≤70%±10% |
| Size cm | 60 x 100 x 125 |
| NW kg | 145kg |
Ozone (O3) Generator
(Optional: Provided based on the customer request and application requirements)
| Model | Atlas 30 (15-75 psig) |
| Ozone Output Capacity: | 30 g/h |
| Working Pressure: | 20 PSIG |
| Feed Gas (O2) Flow Rate: | 0.1-5 SLPM |
| Control Power Requirements: | 120 V~+/-10%, 50/60 Hz, Single Phase, 5.5 A 230 V~+/-10%, 50/60 Hz, Single Phase, 2.75 A |
| Max Power Consumption: | 350W |
| Dimensions: | 35 x 38 x 17 cm (W x D x H) |
| Weight: | 35 lbs (15.88 kg) |
| Safety Features: | Pressure Transducer |
Control Panel (Optional)
(Optional: Provided based on the customer request and application requirements)
| Features |
|
Electrical Power
| Voltage | 415 |
| Phase | 3 (Single-phase option available upon customer request) |
| Hz | 50 |
Pump
| Model | ESHS 50-160/75/P25VSSA |
| Power | 7.5 kW |
| Head/Max Operation Pressure | 34.16 m/ 3,986 mbar |
| Voltage | 380-415/660-690 V |
| Phase / Frequency | 3/50 |
| Casing and Impeller Material | Stainless Steel (AISI 316L) |
| Weight and Dimensions | 81 kg/ 65.9 × 39.7 × 35.1 cm (L×W×H) |
Injector Characteristics
| 1. DIMENSIONS & WEIGHT | |
|---|---|
| Size | 34.5 x 160 x 112 cm (L x W x H) |
| Weight | 5.8 kg |
| 2. MATERIALS | |
| Cone/Housing | 316 Stainless Steel |
| Membrane (Based on the application requirements) |
Titanium Membrane NB Generator NB Size: Mode diameter of 75 nm NB Concentration: 1.13 billion bubbles/mL Gas Transfer Efficiency: 85% 316 Stainless Steel Membrane NB Generator NB Size: Mode diameter of 125 nm NB Concentration: 1.9 billion bubbles/mL Gas Transfer Efficiency: 85% |
| 3. UNIT CONNECTIONS | |
| Unit Inlet | 50 mm |
| Unit Discharge | 50 mm |
Nanobubble Technologies (NBT) is a global leader in nanobubble innovation.
With 10+ years of research and expertise, we have developed a new generation of nanobubble injectors (Titanium and Stainless Steel) that have been scientifically tested and validated by researchers at the University of New South Wales (UNSW).
